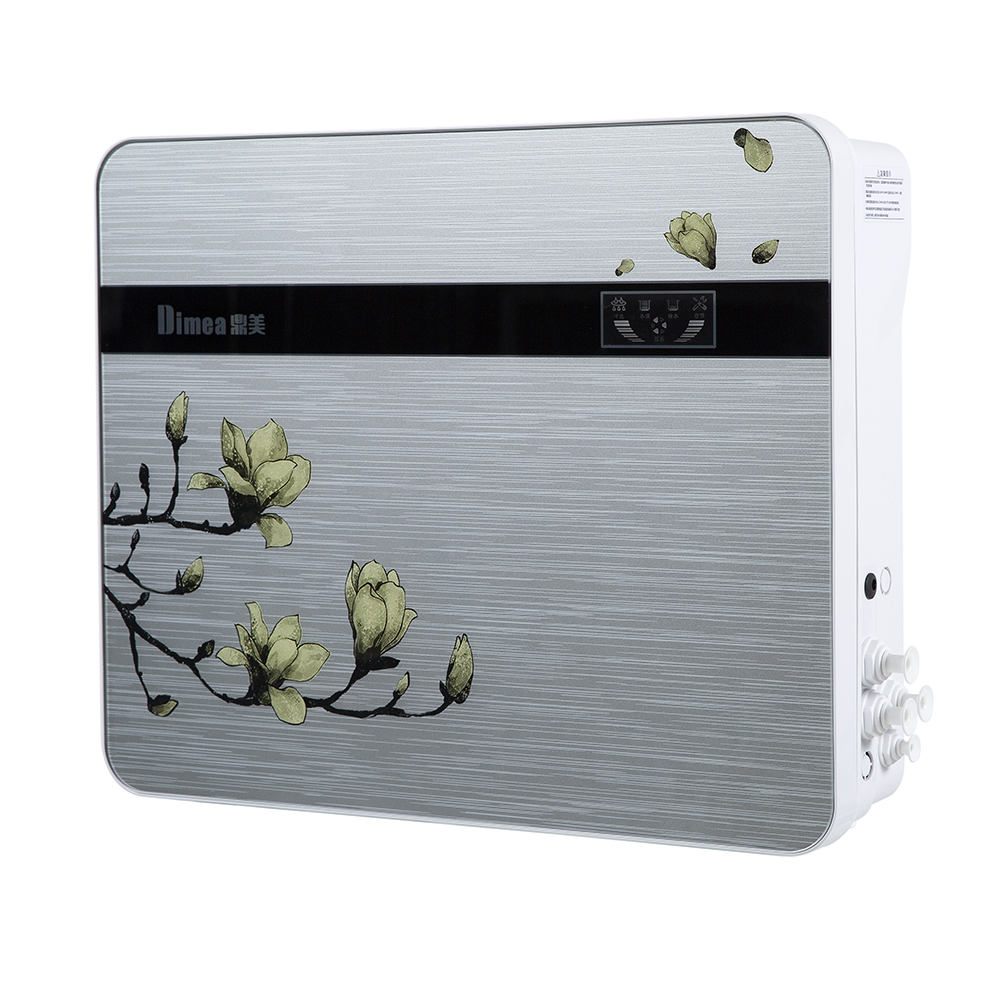

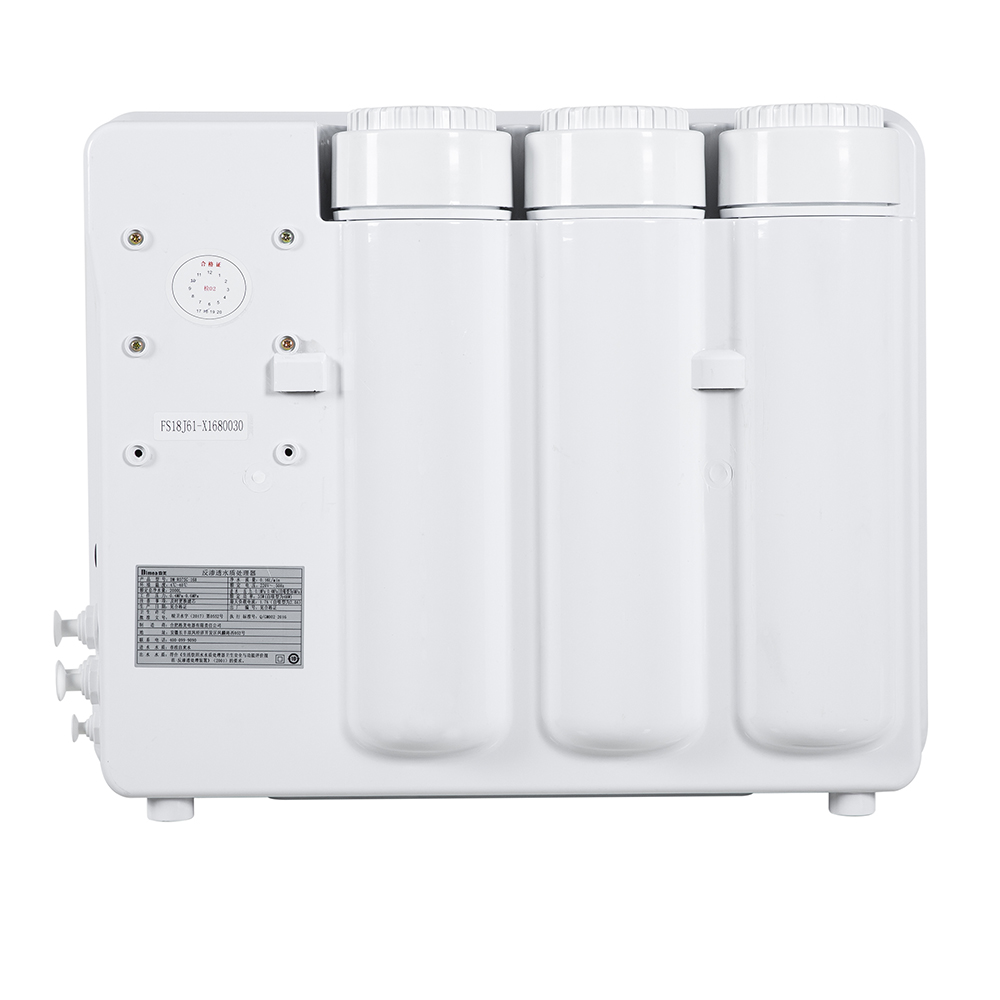

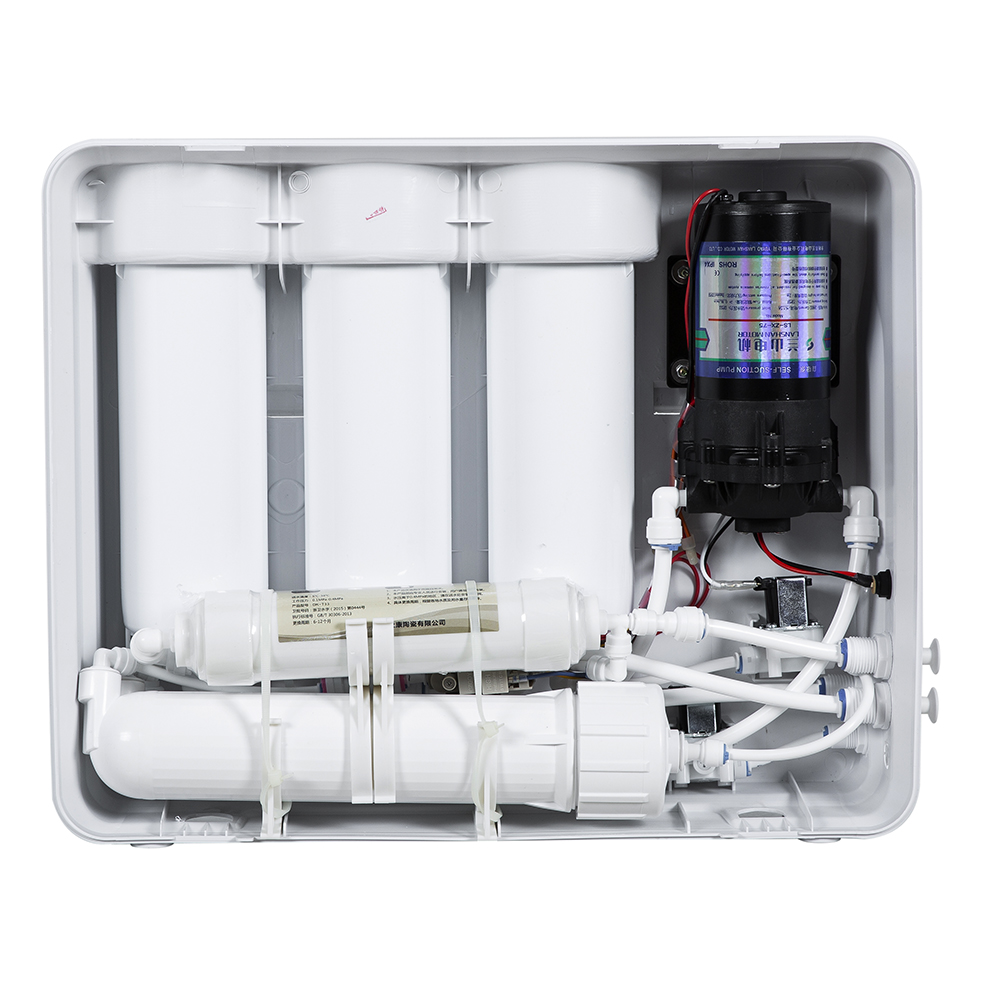

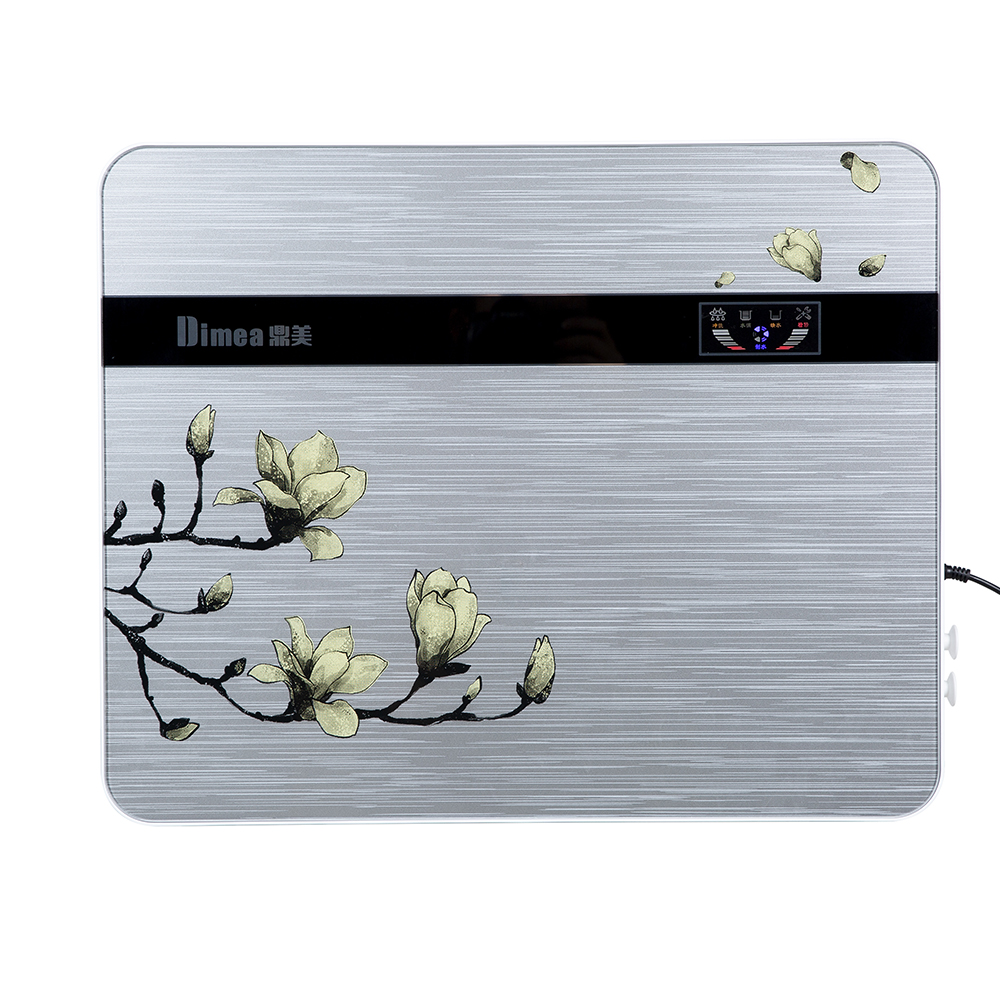

Direct Drinking Water Filter Filtration System TN-RO-168

Direct Drinking Water Filter System
Parameter

RO membrane kind -- 50G/75G/100G
RO Membrane Brand --GE/VONTRON/DO.FOUNTAINHEAD/OEM

Purified Water -- Straight drink

Filter Cartridge -- 5 stages/Customized

Filter cartridge size -- 10"

Descaling function -- Customized

Self-flushing -- Yes

Filtering Accuracy -- 0.01um

Desalination rate -- 95%-98%

Water Tank - 3.2G /Customized

Water Tank Material - Plastic or Steel

Faucet -- Yes

Panel Material -- ABS

Inlet/Outlet -- 1/2",3/4" BRASS BSP

Waste/Purified water ratio -- 1:1/1:2

Pump -- Booster /Self-priming

Pump Brand -- Grandforest/OEM

Product Size -- 475*155*388mm
Packing Size -- 775*276*450mm

Inlet pressure: 0.1-0.4MPa(pressure boost ) ;
                        0MPa(self-priming)

Purified water flow rate: 160ml/min

Rated voltage: 220V~50Hz

Rated power：35W(pressure boost ) ;
                        48W(self-priming)
